JXM7031 Processor Board

Downloads for JXM7031 Processor Board

  1. Data Sheet
  2. Data Sheet for Single-Processor Version

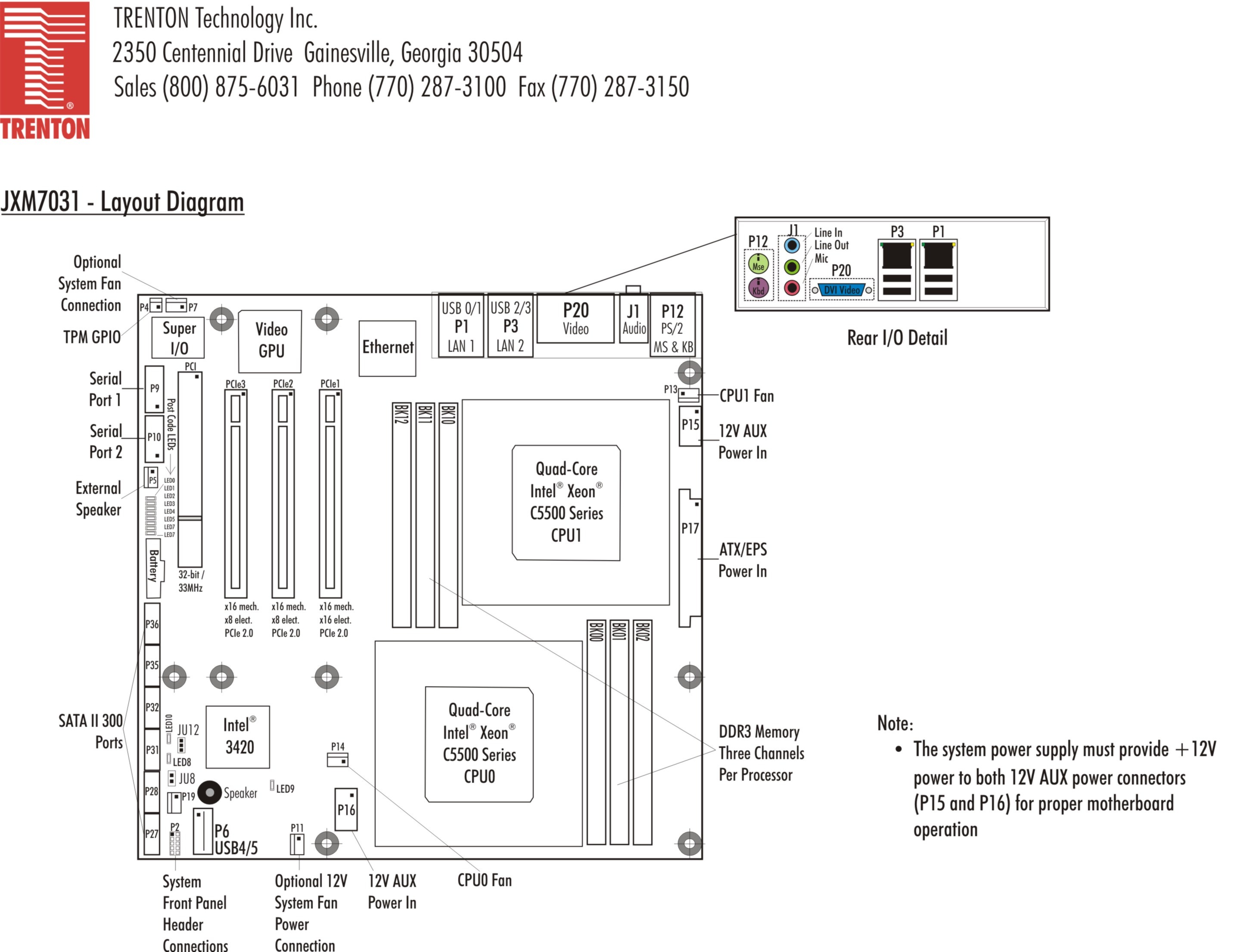

  3. Layout Diagram

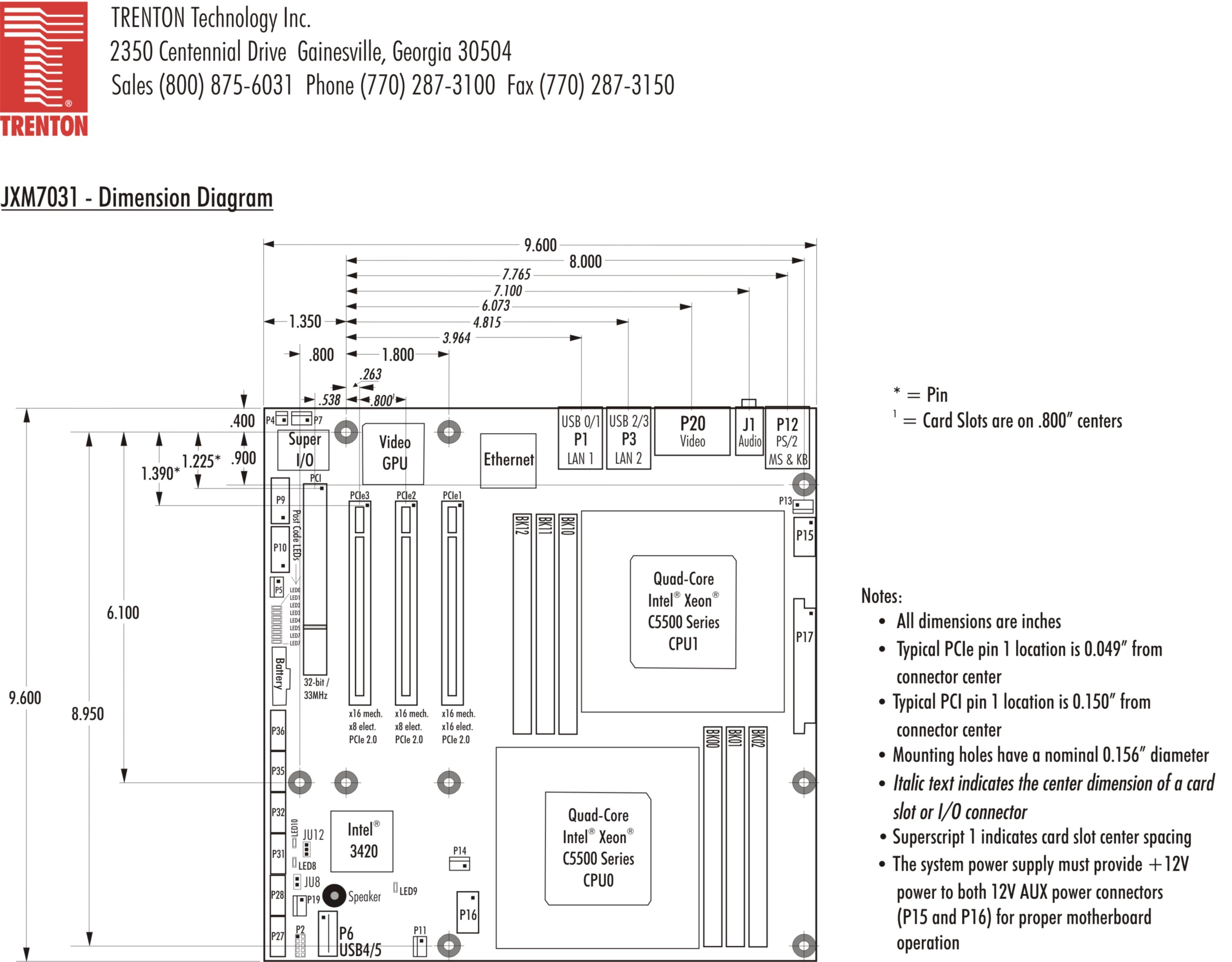

  4. Dimension Diagram

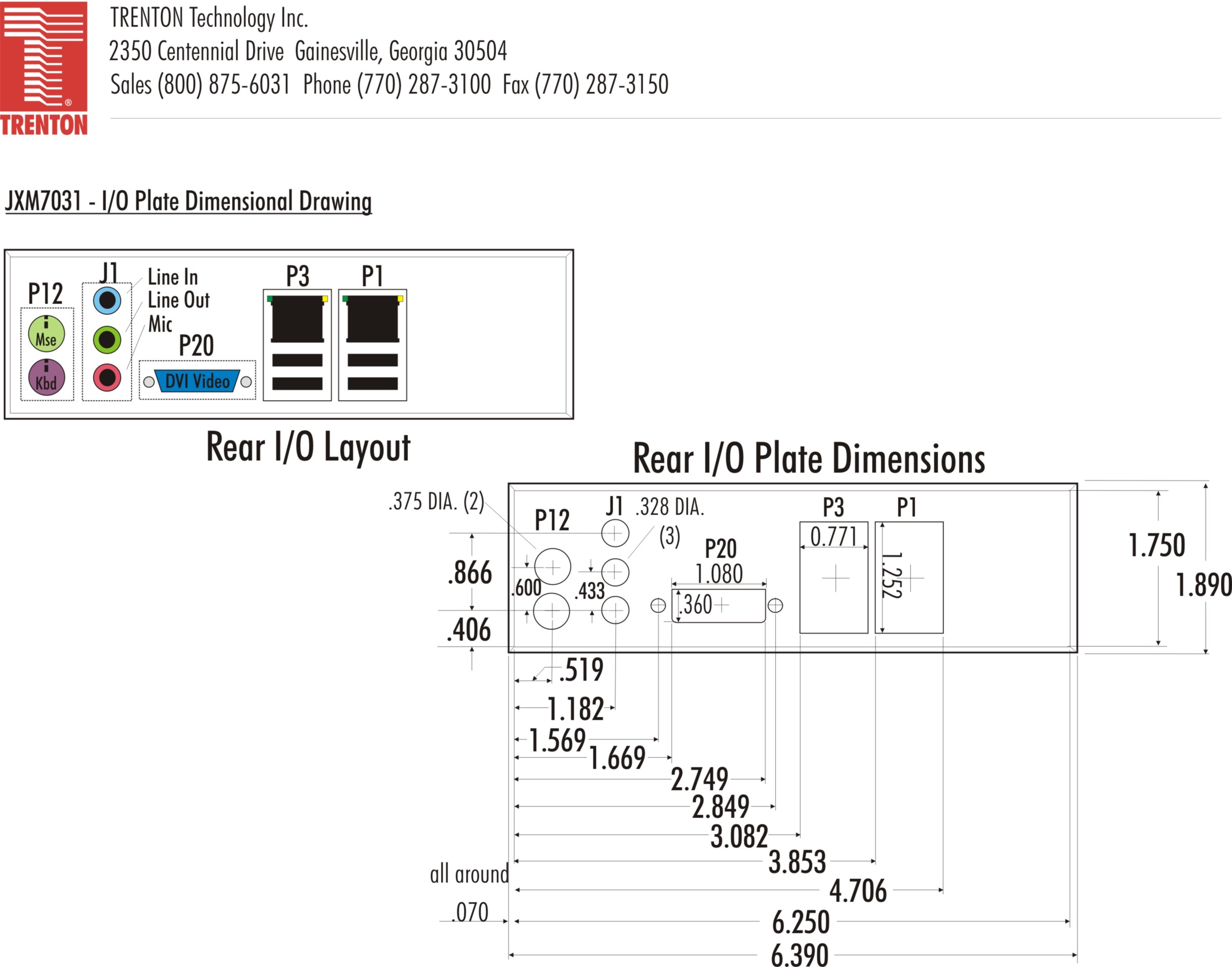

  5. I/O Plate Detail Drawing
  6. Video Driver for XGI® Volari™ Embedded Z11 Graphics Processing Unit
  7. TPM 1.2 Drivers for the Atmel® ATC97SC3203 Trusted Platform Module (TPM)

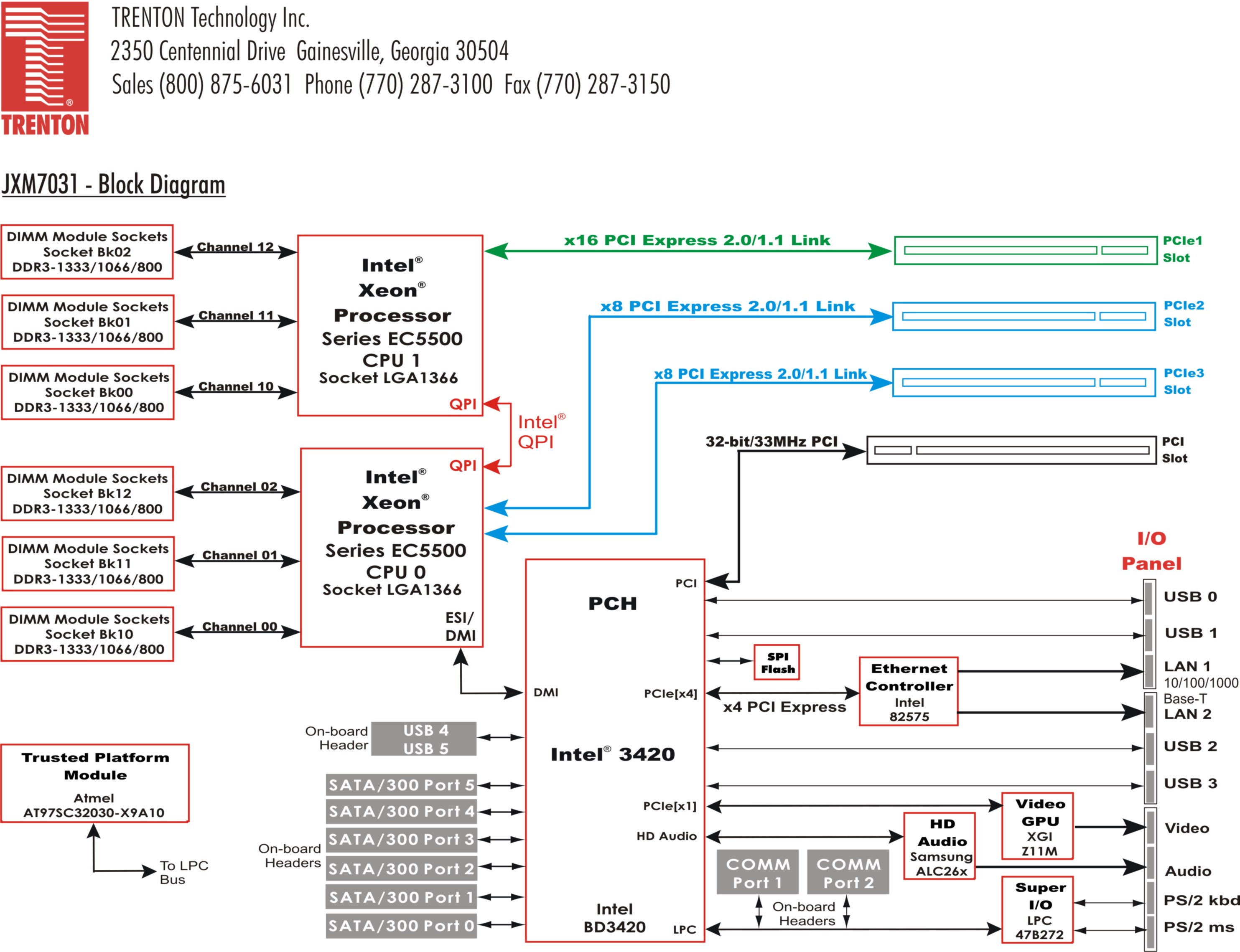

  8. Block Diagram
  9. Jumpers, Connectors, and Memory
